"CUT" Board™ Original - Corrosion UT Test Plate

When it comes to NDT reference standards, precision and realism are paramount. The "CUT" Board™ Original - Corrosion UT Test Plate is the ultimate solution for professionals seeking a high-quality, realistic training and demonstration tool. Designed to simulate real-world corrosion scenarios with unmatched accuracy, this versatile plate is crafted in either carbon steel or aluminum, and measures a practical .375" thick by 12.00" x 18.00".

An Advanced Training and Testing Tool

The "CUT" Board is meticulously engineered to enhance the training of NDT personnel, qualify inspectors, and demonstrate the ultrasonic thickness (UT) measurement capabilities of conventional or phased array ultrasonic testing (PAUT) instruments. Every detail of this board is designed with functionality and precision in mind, ensuring a realistic and practical experience for users.

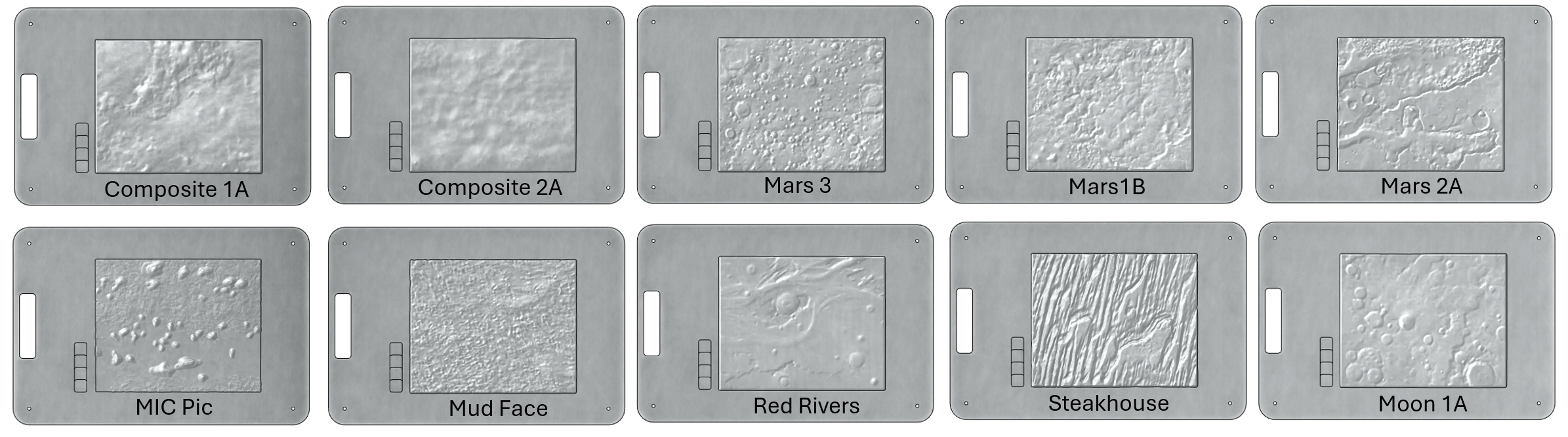

Choose from 10 unique patterns (more on the way.) Please inquire with PH Tool Sales if you would like specific information on the nature of each pattern.

Key Features

1. Proprietary Corrosion Simulation
   A unique, CNC-milled, and abrasively finished pattern replicates artificial corrosion with remarkable realism. This proprietary process ensures users encounter lifelike conditions for an accurate representation of real-world challenges.

2. Precision Grid for Easy Navigation
   The scanning surface features a painted grid with clearly marked letters and numbers, enabling users to efficiently isolate and identify specific features within the corrosion pattern. The low point of corrosion is strategically placed within a single grid cell for maximum clarity.

3. Integrated Step Block
   An embedded step block provides thickness ranges of .075", .150", .225", .300", and .375", with dual-unit engravings in inches and millimeters. This addition allows for thorough calibration and accurate measurements during training.

4. Cloaking Plate for Blind Testing
   A removable cloaking plate can be applied to the back of the board, concealing the corrosion pattern to facilitate unbiased training or personnel qualification tests. For added anonymity, the plate hides a laser-engraved QR code containing the board’s serial number and identification information.

5. Optimized for Stability and Transport
   Designed for practicality, the "CUT" Board includes a machined carrying handle for effortless transport and rubberized feet in each corner to ensure stability during use.  A custom-fitted Pelican Case is also available to keep your investment protected.

6. Compatibility with Industry-Leading Scanners
   Fully optimized for use with the Olympus Hydroform Scanner, the "CUT" Board is a seamless addition to any testing environment, delivering unmatched compatibility and ease of use.

Whether you're demonstrating the capabilities of your UT instruments, qualifying third-party inspectors, or refining the skills of your inspection team, the "CUT" Board offers an unparalleled combination of realism, precision, and practicality. Its advanced features and thoughtful design make it an essential tool in the arsenal of NDT professionals worldwide.
