Description
For non-destructive testing (NDT) professionals who value precision in a compact form, the "CUT" Board™ Mini - Corrosion UT Test Plate is the perfect solution. Crafted with the same attention to detail as its full-sized counterpart, the Mini offers all the features you love in a smaller, more portable footprint. Available in carbon steel or aluminum and measuring .375" thick by 6.00" x 6.00", this tool is ideal for conventional UT thickness checks and smaller phased array ultrasonic testing (PAUT) probes.
Compact Yet Comprehensive Training and Testing Tool
The "CUT" Board Mini is designed to meet the needs of training programs, inspector qualification, and instrument demonstrations without compromising on functionality or accuracy. It provides a realistic, versatile testing environment while being easy to handle and transport.

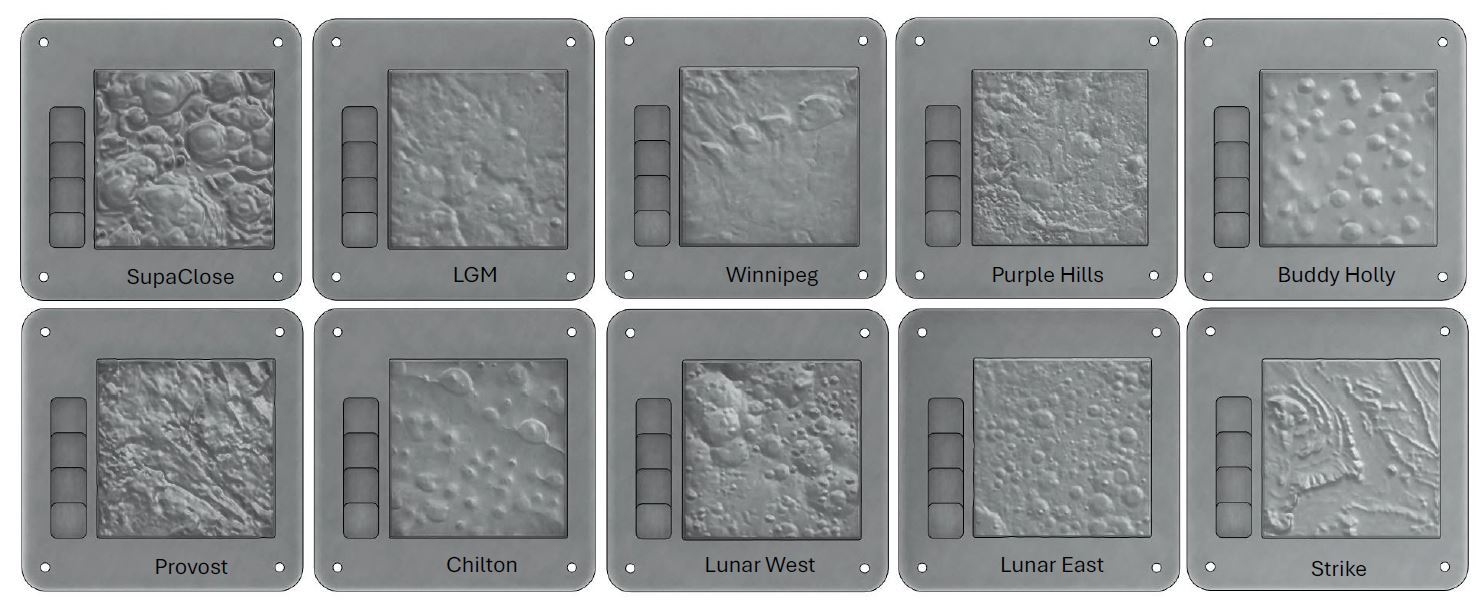

Choose from 10 unique patterns (more on the way.) Please inquire with PH Tool Sales if you would like specific information on the nature of each pattern.
Key Features
-
Realistic Corrosion Simulation
The Mini features a proprietary CNC-milled and abrasively finished corrosion pattern, delivering lifelike simulation. Despite its smaller size, it offers the same unmatched realism as the full-sized version. -
Efficient Grid Navigation
The scanning surface is equipped with a grid of paint-filled letters and numbers, allowing users to quickly isolate and identify features in the corrosion pattern. The low point of corrosion is carefully positioned to fall within a single grid cell for clarity and accuracy. -
Integrated Step Block for Versatility
Like the full-sized board, the Mini includes a built-in step block with thickness ranges of .075", .150", .225", .300", and .375", engraved in both inches and millimeters. This feature enables accurate calibration and comprehensive testing. -
Cloaking Plate for Blind Testing
The included cloaking plate can be attached to the back of the board to conceal the corrosion pattern during training or qualification, ensuring unbiased results. A laser-engraved QR code on the underside stores the board's serial number and identification details for added anonymity. The serial number is also permanently machine-engraved on the bottom-side in an area that gets covered by the cloaking plate. -
Stability in a Portable Design
The Mini’s rubberized feet provide stability during use, while its compact size and lightweight design make it perfect for on-the-go testing or use in limited spaces. A custom-fitted Pelican Case can also be added to protect your investment.
Small Size, Big Impact
The "CUT" Board Mini is a scaled-down powerhouse, retaining all the core features of the original "CUT" Board while offering enhanced portability and suitability for smaller probes and tighter workspaces. Whether you're training personnel, qualifying inspectors, or showcasing the capabilities of your UT instruments, the "CUT" Board Mini delivers precision, versatility, and convenience in a compact form.
